Meisonic GA199KBL Series Monitor Wall Mount
Heavy-duty aluminum alloy bracket for 15-27" displays (≤12kg total/≤10kg screen). Features 360° rotation, ±15° tilt, and 180° joint articulation. Universal VESA 75*75/100*100 mm compatibility ensures secure wall-mounting for ergonomic viewing optimization.
Full-motion flexibility for home/office/hospital/factory/machine setups
Durable aviation-grade aluminum alloy construction with precision angle adjustment.
Seamless integration with most commercial monitors
Stable and Durable,Built for Harsh Environments
Space-Saving and Efficient
Flexible Adjustment for Ergonomics
Improved Work Efficiency
Strong Compatibility and Easy Installation
High Safety Standards
Industrial PC Mount
Workbench Monitor Mount
Machine Monitor Mounting
Warehousing Monitor Mounting
Wall mounted Monitor Bracket
All in one PC Mounted Bracket
Wall mounted workstation
Hospital nurse workstation
Doctor workstation monitor bracket
Place Of Origin |
China |
Brand Name |
Meisonic |
Model Number |
GM199KBL |
Price |
$$ |
Packaging Details |
Customized Carton Box |
Delivery Time |
15-30days |
Payment Terms |
50/50TT |
Supply Ability |
10000pcs per month |

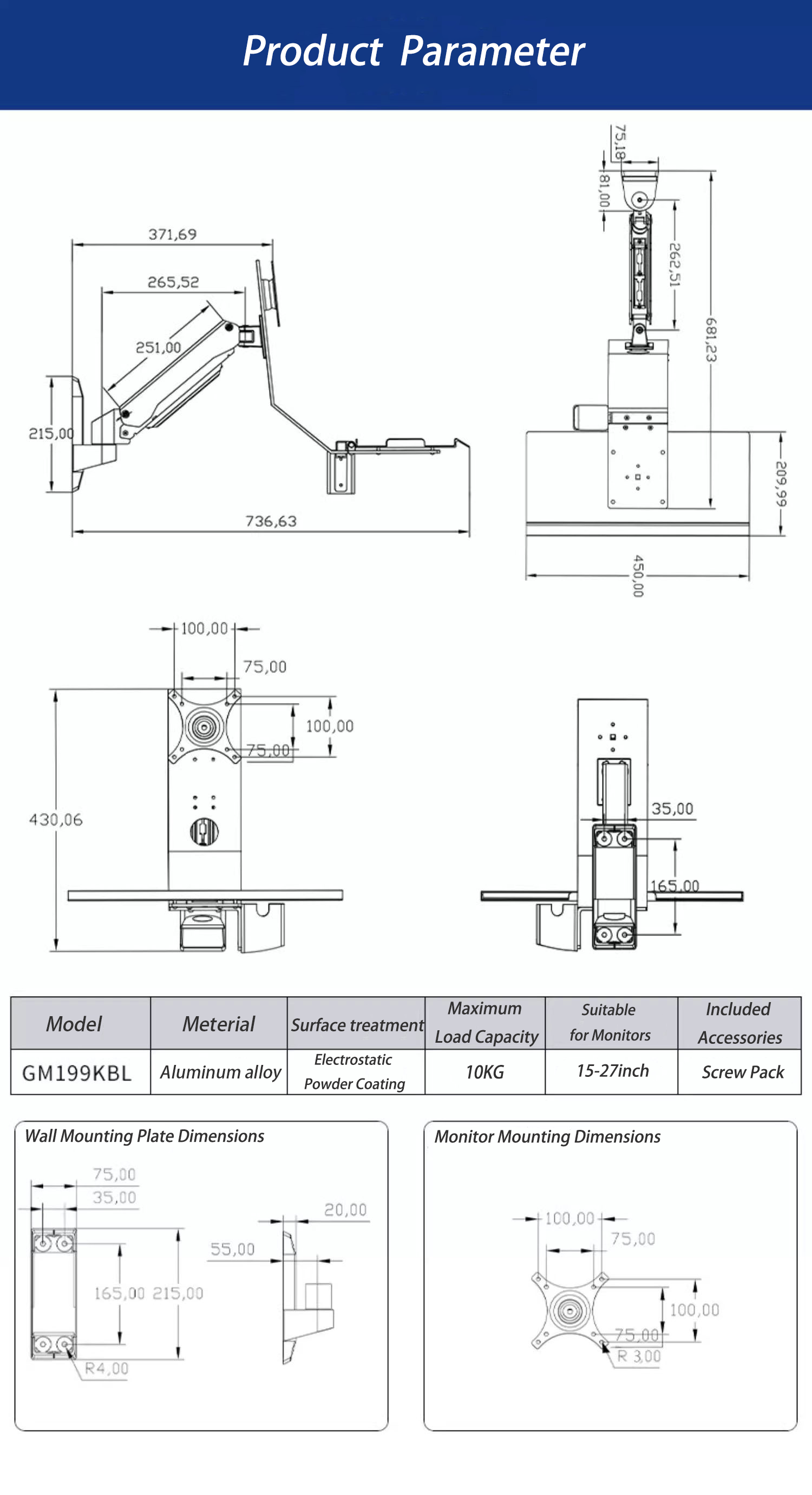

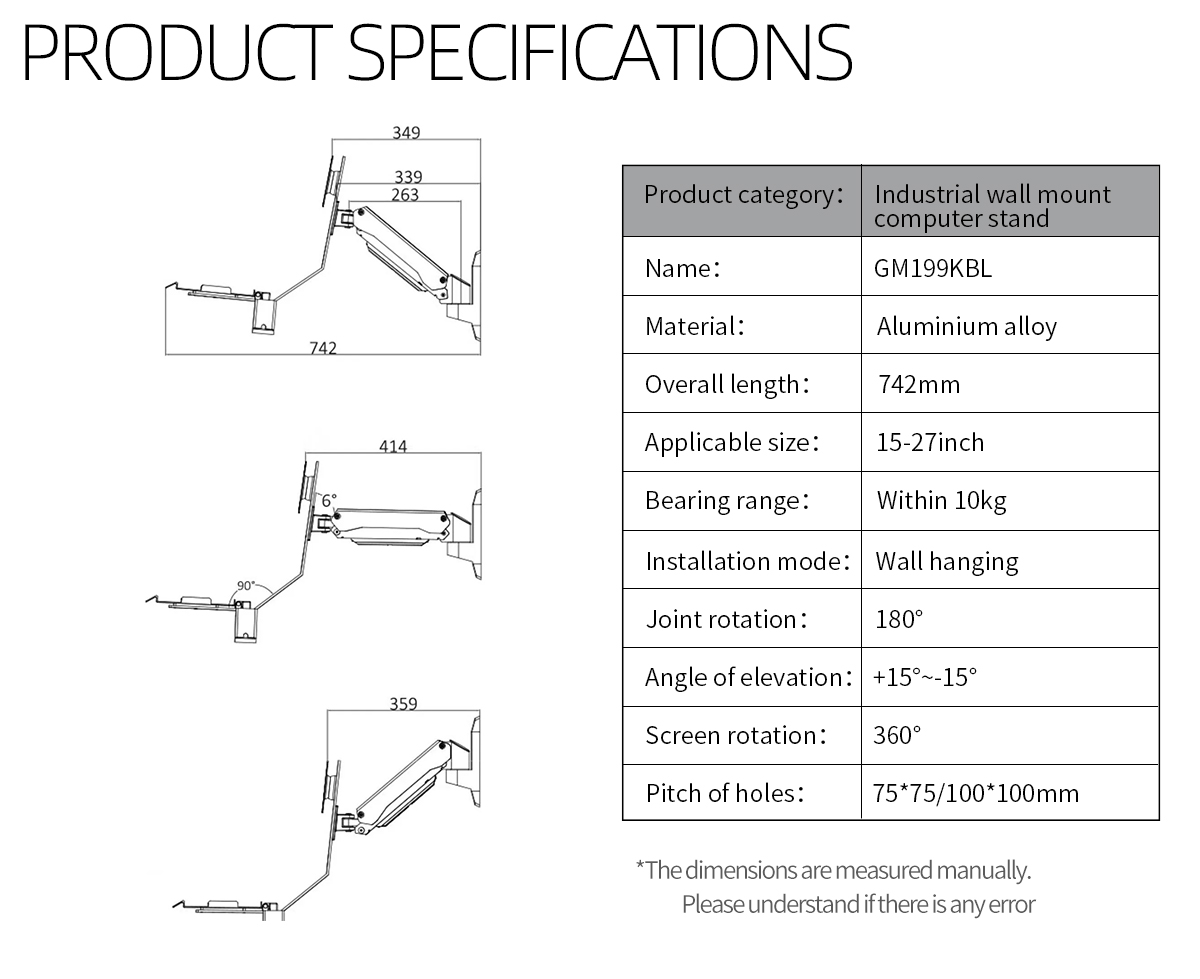

Model |
GA199KBL |
Color |
White, Black, Silver |
Material |
Aluminium Alloy |
Overall length |
742 mm |
Applicable size |
15-27inch |
Bearing range |
Within 12kg |
Display bearing |
Within 10kg |
Installation mode |
Wall Mounting |
Joint rotation |
180° |
Angle of elevation |
+15°~-15° |
Screen rotation |
360° |
Vesa appliance |
75*75/100*100mm |

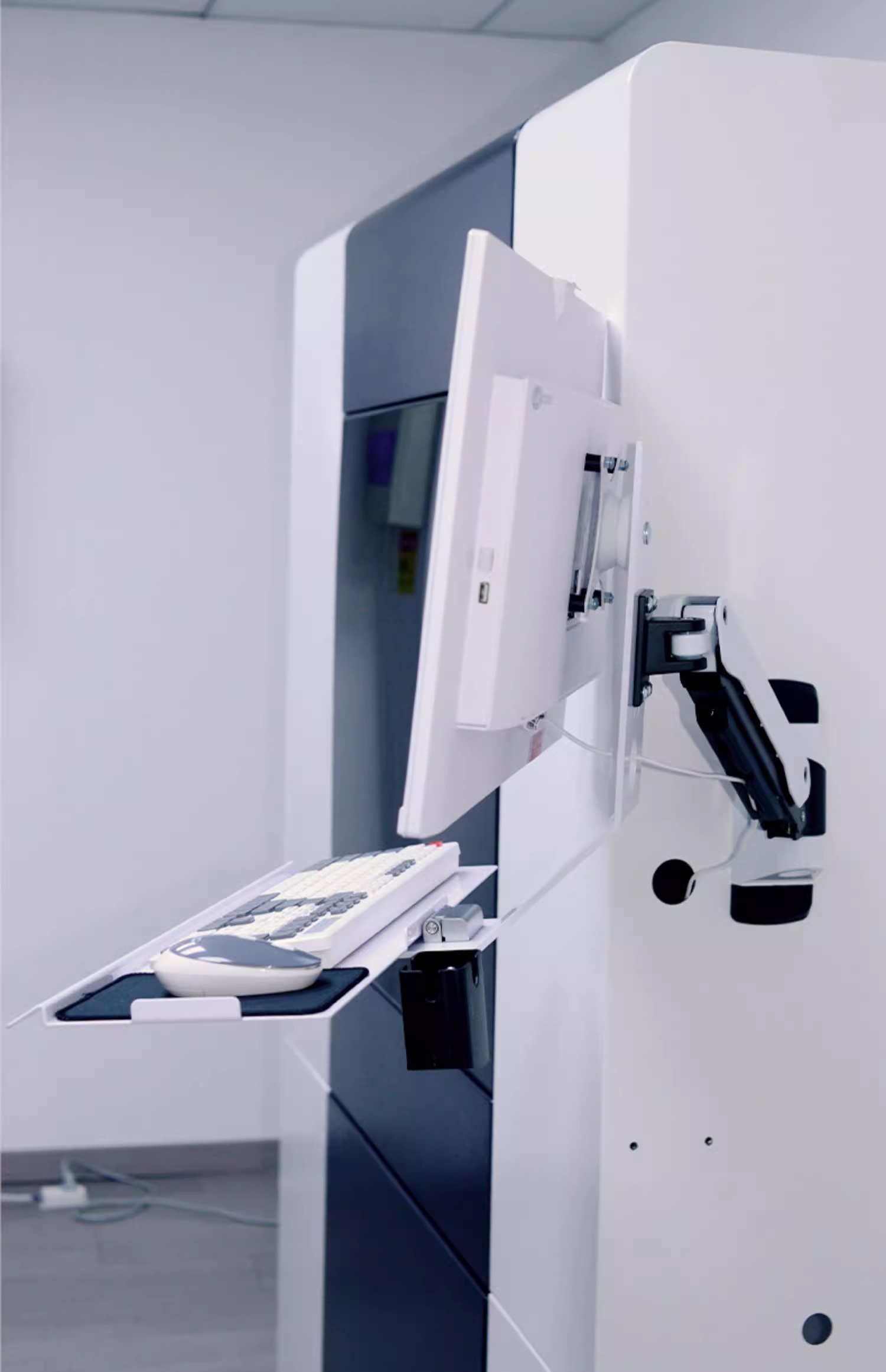

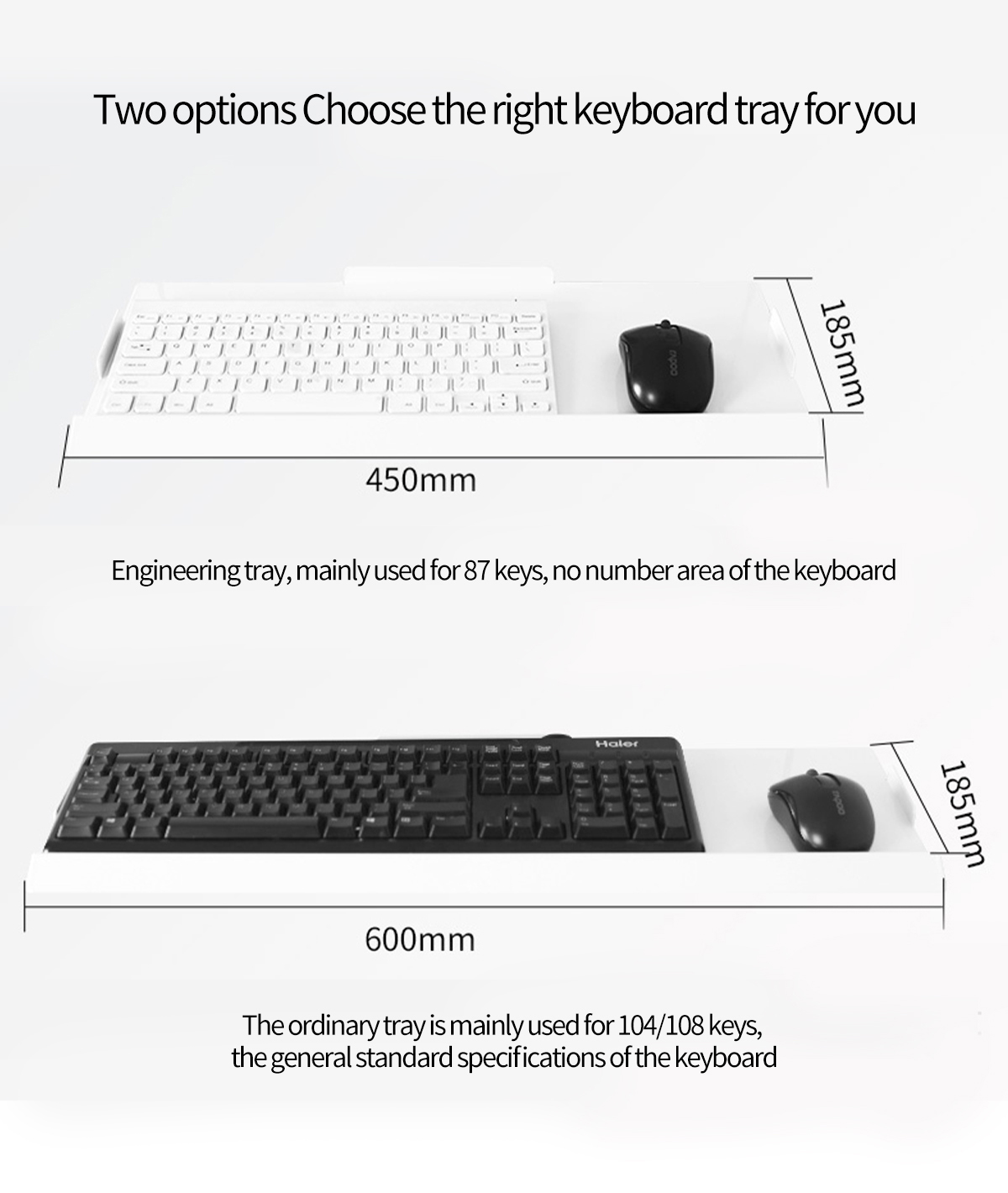

Meisonic GA199KBL Monitor Arms with folding keyboard tray
Aerospace-grade aluminum alloy construction with patented spring mechanics delivers precision motion control for 2-10kg displays. Features tool-free installation, ±15° tilt, 360° rotation, and VESA-compliant adjustments via quick-release joints. Slim-profile engineering combines industrial durability with intuitive ergonomics optimize viewing angles.
 |
 |
 |
 |
T8-GA02KB-SPB Automation Industry Machine Monitor Mounting Solution Aluminum Alloy Bracket Two VESA mounts with keyboard Tray In Silver
FE110KB-C/G Workbench Mount Monitor Bracket With Keyboard Tray
T9-GA02KB Height-Adjustable Display Stands Space-Saving Foldable Monitor Stand for Production Lines Maximum Tilt 90 Degrees New

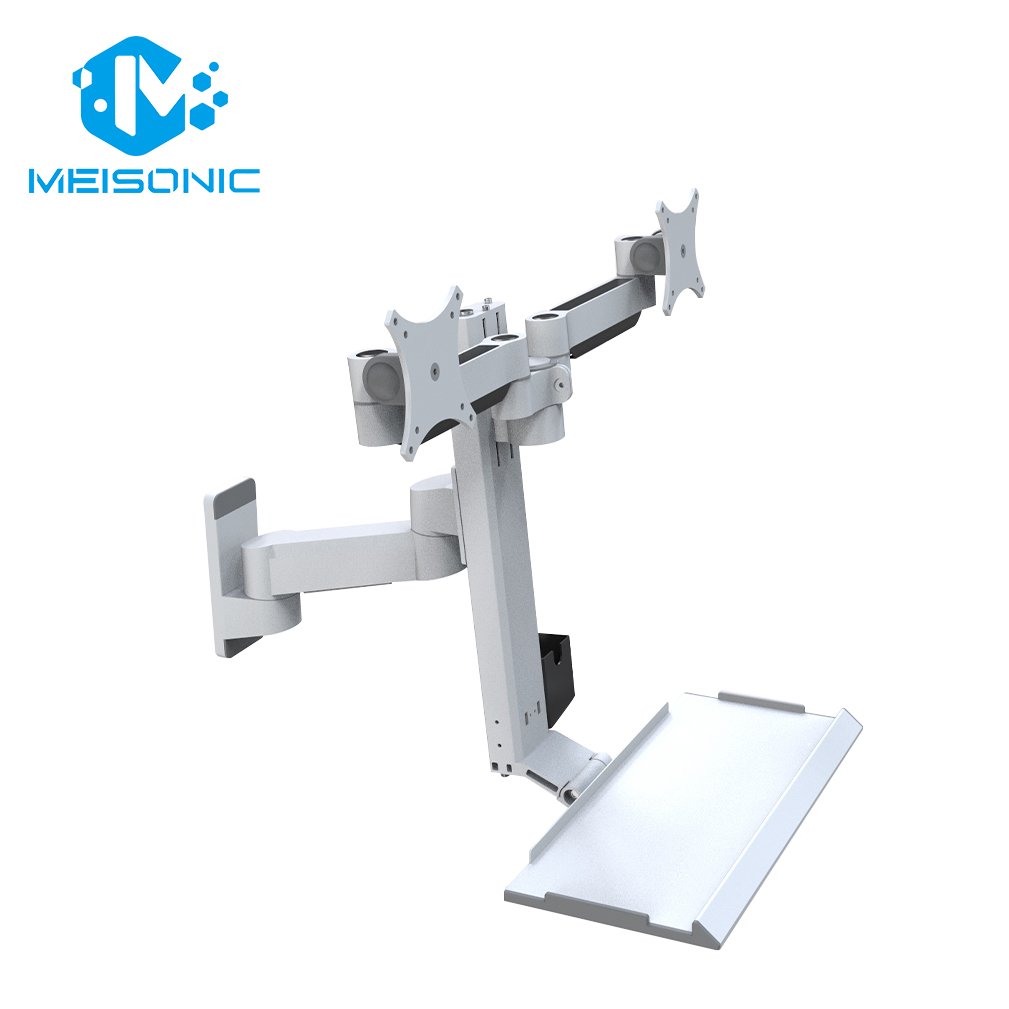

T9-MA01KB-HSP-1 Bracket vesa wall amount monitor 360 rotating display stand
