T9-GA02KBL industrial monitor mount application in printing machine

Industrial monitor arm application:

With more and more customer tried Meisonic monitor mount , and our products are widely use in many industrial areas . CNC machine , automation machine use , warehousing management system , electronic components production line , assembly line production line, warehousing management ,etc.

Our T9-GA02KBL model industrial monitor mount is specifically fit for various printing and packaging equipment, and is suitable for printing press control consoles, operator workstations, and production line monitoring systems. The mount features a robust structure that provides stable, long-term support for industrial monitors or HMI operator interfaces, meeting the demands of printing equipment operating at high speeds and in vibrating environments.

About the gas spring inside our monitor mount , provide 4.5 cm3 , pressure can reach 6.5 MPa , while lifting can provide 500 N’s power.

Printing Machinery Application Instructions

During the operation of printing machinery, operators need to monitor equipment parameters, printing status, and quality inspection information in real time. Industrial monitor mount securely install the monitor in a suitable position, ensuring a clear display and optimal viewing angle, thereby improving the accuracy and efficiency of equipment operation. They are widely used in packaging printing machines, label printing machines, and digital printing equipment, among other applications.

Here we are going to show the one case of our monitor mount product applicated in printing machine industry.

Industrial-Grade Structural Design

This bracket features an industrial-grade structural design, offering excellent vibration resistance and load-bearing capacity. It is suitable for installation on printing equipment frames or control cabinets. Compared to consumer-grade monitor brackets, it is better suited for long-term continuous operation in industrial environments, effectively preventing monitor shaking and loosening, and ensuring the stability of equipment operation. Also color in black improve the final printing machine’s looking.

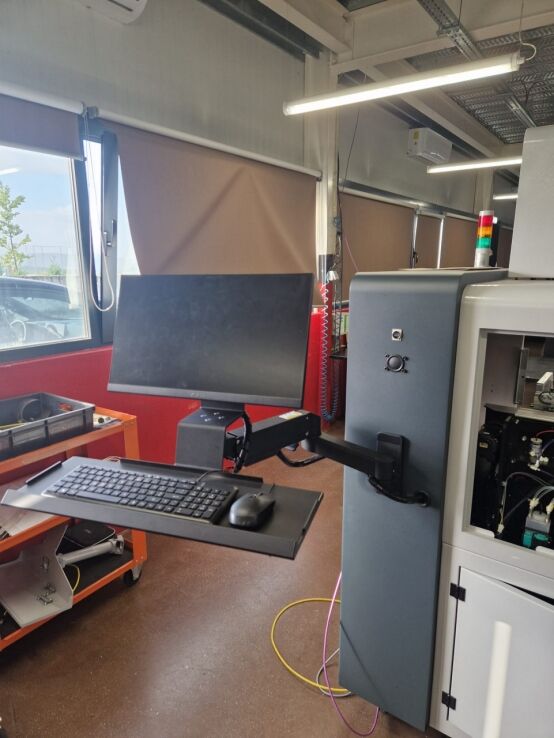

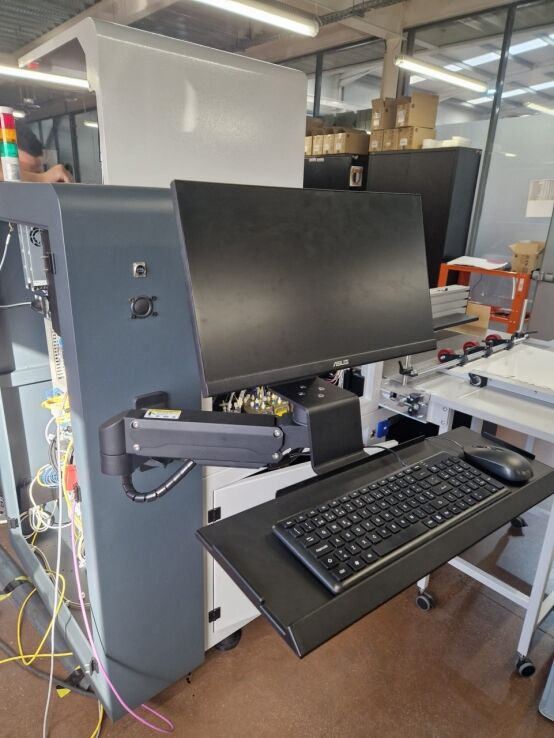

Case 1

Ergonomic Adjustment

This mount supports adjustment of the monitor's angle and height, allowing operators to adjust the monitor position according to their actual work needs. This helps maintain a comfortable viewing posture during prolonged operation, reducing fatigue and improving the operating efficiency of the printing equipment.

Here shows this models’ parameter.

Product category: Industrial Gas Spring Monitor Mount

Model number：T9-GA02KBL

Aluminum alloy material

Overall length can reach 888mm

Applicable screen size:15 to 32 inch

Bearing range:Within 20 kg

Display bearing:Within 10 kg

Installation mode :Wall hanging or machine hanging

Joint rotation 180°

Angle of elevation:+15°~-15°

Screen rotation :360°

Vesa compatible :75*75/100*100 mm

Installation and Compatibility

The industrial monitor mount is compatible with common VESA mounting standards, and is suitable for various sizes of industrial monitors and HMI panels. Different mounting methods can be selected based on the printing machine structure, supporting standard installation or customized solutions to meet the application needs of different equipment manufacturers and system integrators. Standard VESA size , and strong wall surface or machine surface will be able for our product to get well installed.
