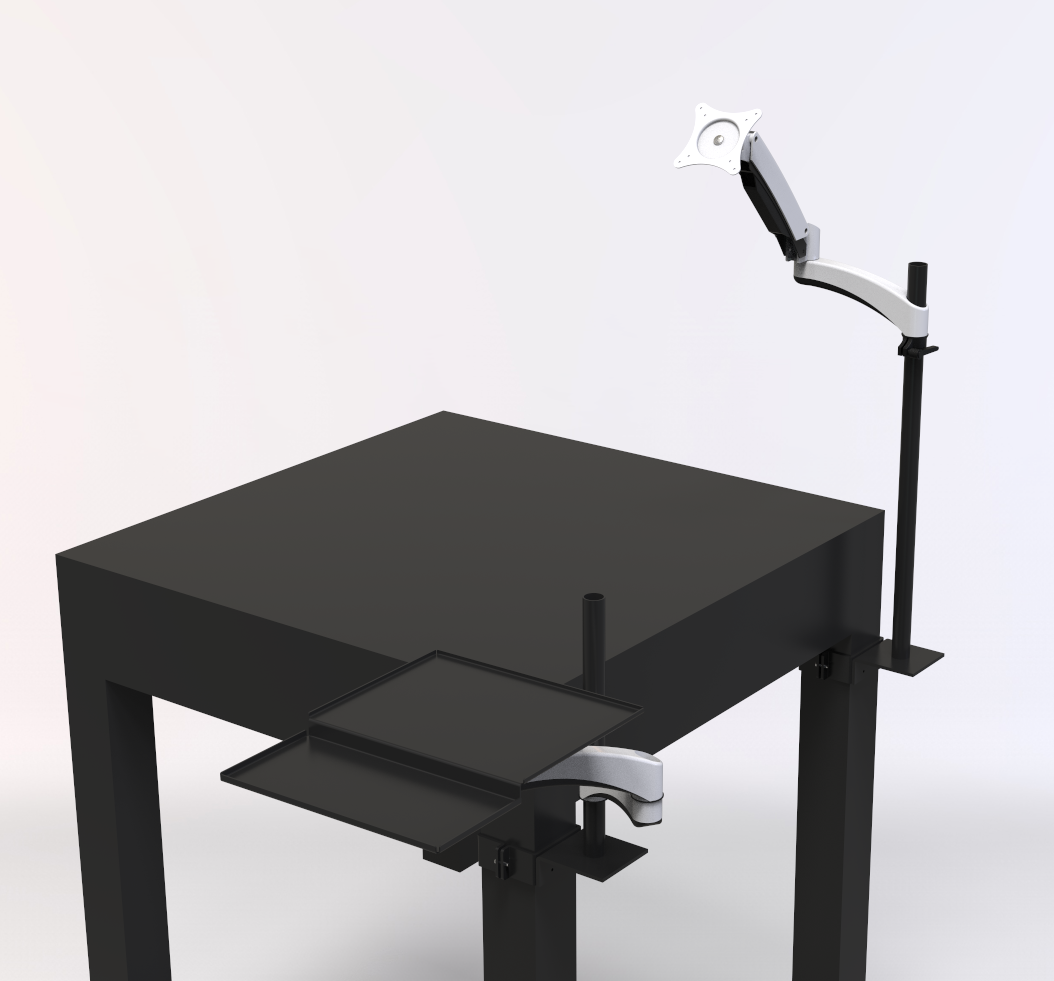

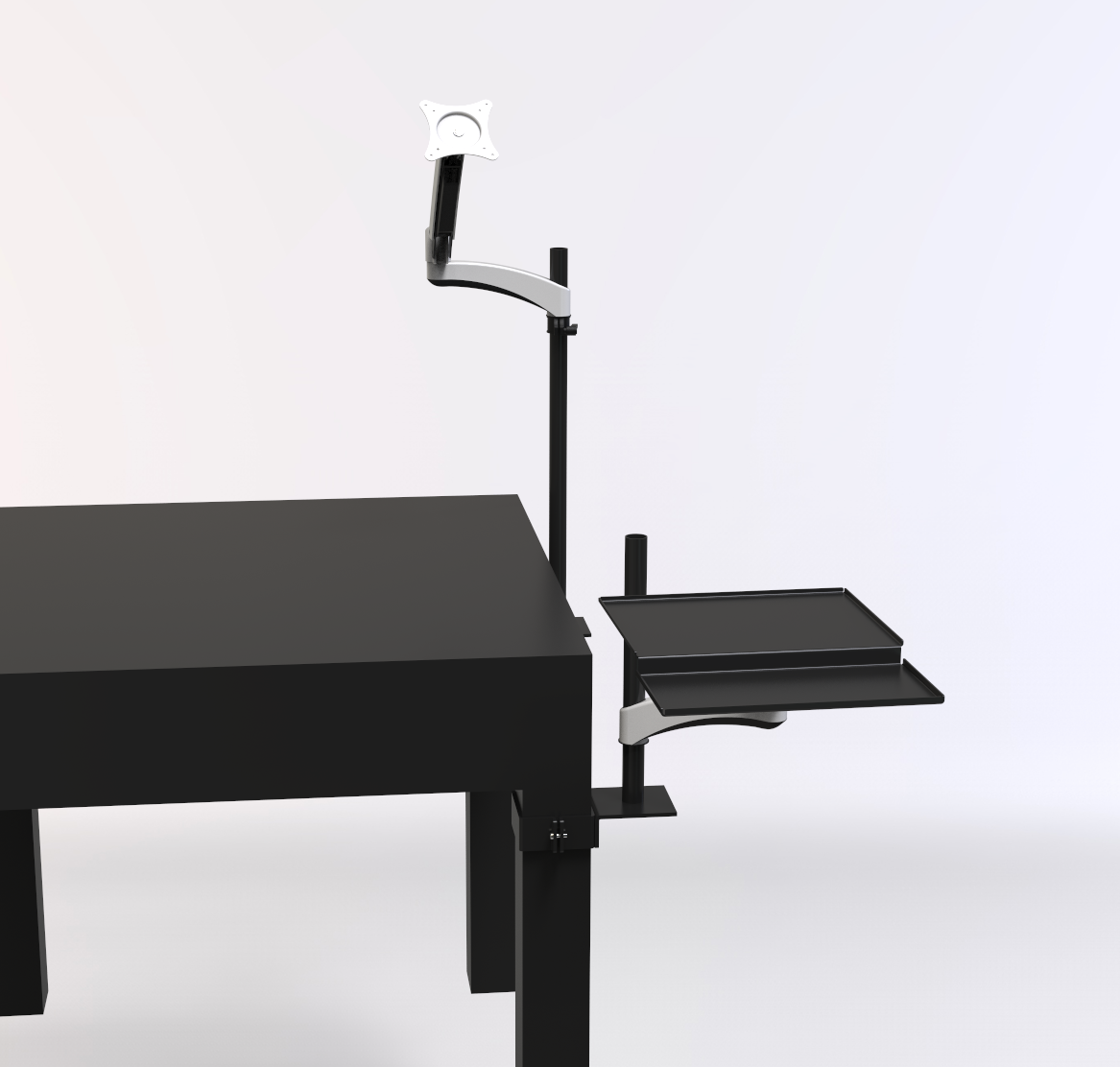

In 2025, Meisonic completed a special project for a customer in Netherlands, providing a monitor and keyboard traymounting solution for a Pneumatic Air Floating Anti-Vibration Isolation Optical Table.
This was a new application field for our team. After detailed discussions with the customer, we fully understood the requirements of their optical inspection workstation. Our engineers then began designing a dedicated mounting solution.
Through multiple design optimizations and testing, we finally delivered a stable and ergonomic industrial monitor mount systemthat integrates perfectly with the optical inspection table.
Optical Inspection Workstation with Industrial Monitor Mount
In modern industries such as semiconductor manufacturing, precision electronics, and medical device production, optical inspection systems are essential for maintaining product quality.
High-resolution cameras, microscopes, and measurement instruments are commonly used to detect microscopic defects and ensure strict quality standards.
To support these precision instruments, many laboratories and production facilities build inspection systems on Pneumatic Air Floating Anti-Vibration Isolation Optical Tables, which provide a highly stable platform by minimizing environmental vibration.
However, one important component often overlooked is the monitor mounting solution. A well-designed industrial monitor mount can significantly improve workspace efficiency, ergonomics, and workstation organization.
Also need to consider the stable and weight capacity for our mounts . Maximum the working efficiency of end user.
Why Vibration Isolation Is Important
Optical inspection systems often use highly sensitive equipment such as: High-magnification microscopes
Laser measurement devices
Interferometers
Industrial cameras
These devices are extremely sensitive to vibration. Even small disturbances from nearby machines or human movement can affect image clarity and measurement accuracy.
A Pneumatic Air Floating Anti-Vibration Optical Table isolates external vibration through pneumatic air springs, providing:
Low vibration frequency
High load capacity
Excellent damping performance
A stable platform for precision measurement
This stable environment ensures accurate inspection results.
The Challenge of Monitor Placement
Although the optical table provides a stable platform for instruments, monitors are often simply placed on the table using a standard desk stand. This creates several issues.
Optical tables typically have a precision hole grid used for mounting instruments. A monitor base can occupy valuable space needed for optical equipment.
Operators often need to adjust their viewing angle when analyzing images. Fixed monitor positions reduce efficiency during long inspection sessions.
Without a proper mounting system, cables from cameras, computers, and monitors can become messy and disorganized.
Long working hours require comfortable monitor positioning to reduce operator fatigue.
Integrating an Industrial Monitor Mount
A professional industrial monitor mounting systemprovides a practical solution to these challenges.
By installing an industrial monitor arm, the monitor can be positioned above or beside the inspection area without occupying valuable table space.
Compared with standard office monitor arms, industrial monitor mounts offer stronger structures and better durability for demanding environments.
Key advantages include:
Flexible Adjustment
Height adjustment
Tilt and rotation
Horizontal reach
Operators can easily adjust the monitor position for different inspection tasks.
Strong Structural Stability
Industrial mounts are built with high-strength aluminum alloy or steel, supporting heavy displays while maintaining stability during adjustment.
Better Space Utilization
Raising the monitor off the table surface frees up space for optical equipment and inspection tools.
Improved Cable Management
Integrated cable routing keeps signal and power cables organized, creating a cleaner workspace.
Typical Optical Inspection Workstation Setup
A typical optical inspection workstation may include:
Core Equipment
Optical microscope or camera system
LED inspection lighting
Image processing computer
Industrial monitor display
Support Structure
Pneumatic vibration isolation optical table
Industrial monitor mounting arm
Keyboard tray mounting system

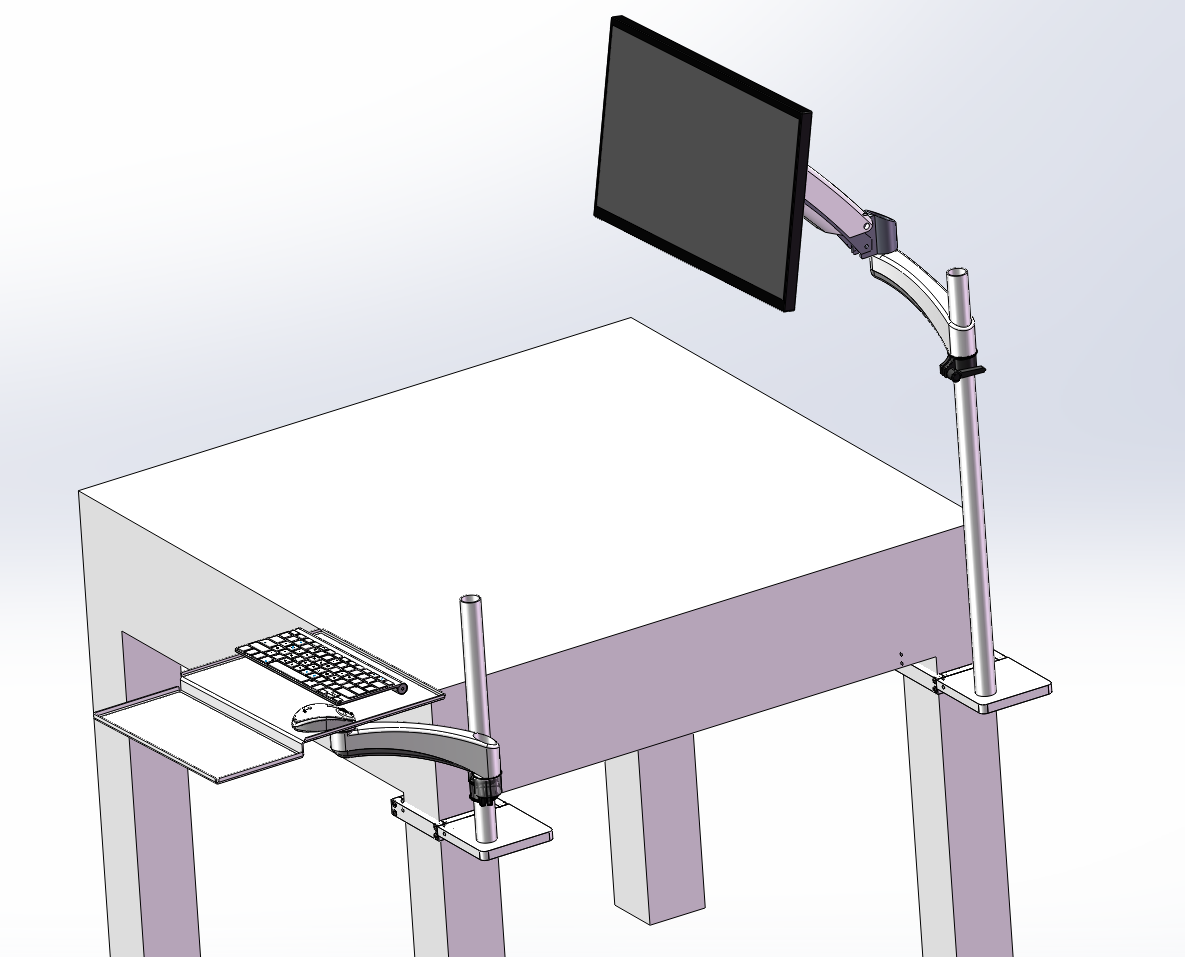

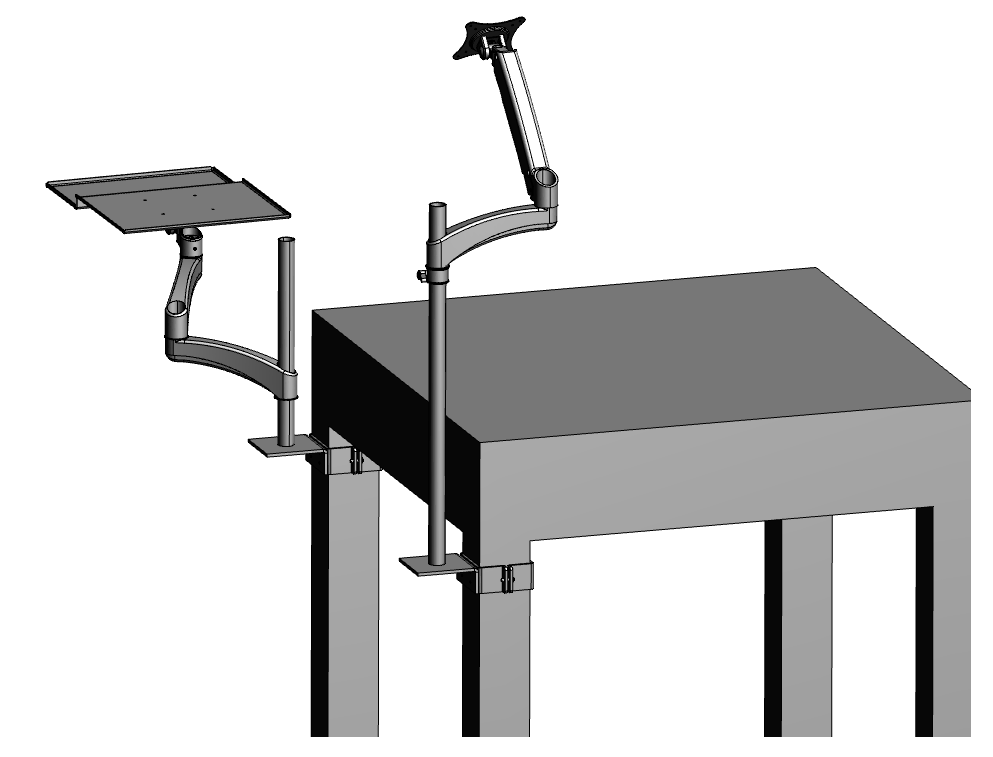

In this configuration, the monitor and keyboard are mounted on adjustable arms near the operator’s workspace, while the optical instruments remain securely installed on the vibration-isolated table.
This layout improves both workflow efficiency and workspace organization.
Industries Using This Solution
Optical inspection workstations with industrial monitor mounts are widely used in:
Semiconductor manufacturing
Electronics assembly inspection
Medical device production
Precision optics manufacturing
Scientific research laboratories
In these environments, improved workstation design can significantly enhance inspection efficiency and accuracy.
Conclusion
A high-performance optical inspection workstation requires more than precision instruments. Workspace organization, ergonomics, and system integration are equally important.
By combining a Pneumatic Air Floating Anti-Vibration Isolation Optical Table with a professional industrial monitor and keyboard mounting system, manufacturers can create a stable, efficient, and ergonomic inspection environment.
This integrated solution helps improve both operator productivity and inspection accuracy in modern precision manufacturing.
